TMS Navigation Using “Gold Standard” Navigation Technology

YINGCHI Transcranial Magnetic Stimulation 3D Navigation System adopts the “gold standard” navigation technology — infrared optical navigation and positioning technology. It achieves sub-millimeter spatial accuracy, can target any point across the entire brain, and assists operators in rapidly and precisely locating TMS targets, significantly improving treatment efficacy and efficiency.

Sub-Millimeter Tracking Accuracy
YINGCHI Transcranial Magnetic Stimulation 3D Navigation System uses the NDI binocular infrared camera, with a maximum sampling rate of 120 Hz and surgical-grade positioning precision, enabling real-time sub-millimeter target tracking. This camera has obtained authoritative international certifications from the EU, Canada, the UK, and other regions, and is the only camera used in navigation systems approved by the U.S. FDA.

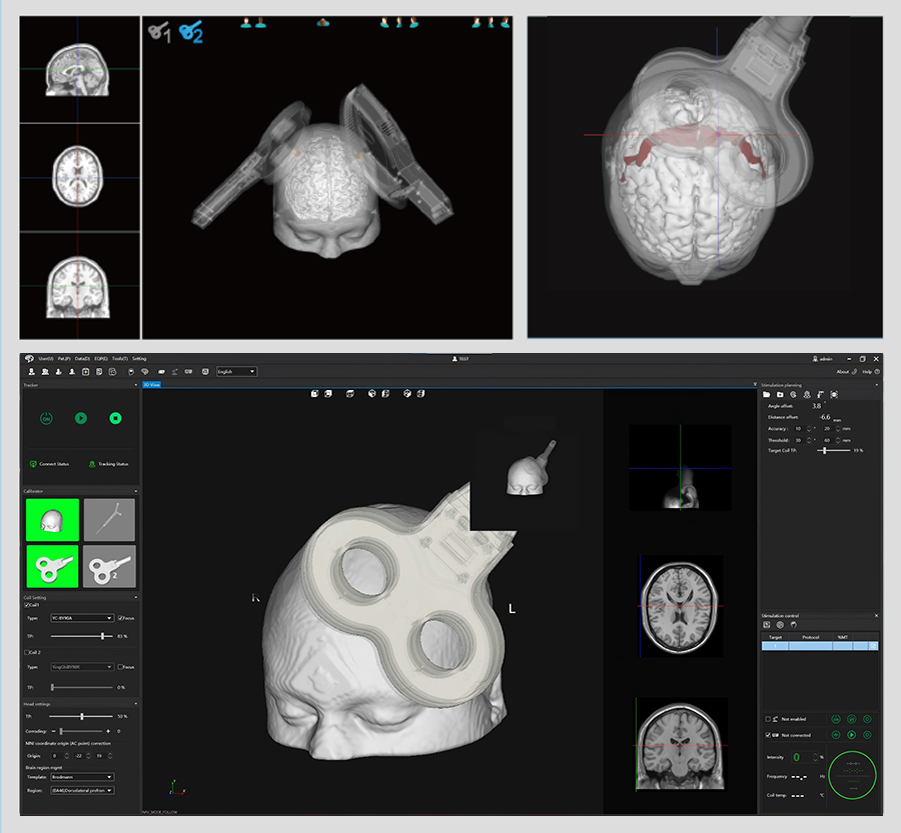

Dual-Coil Whole-Brain Tracking
->Supports simultaneous tracking and navigation with dual coils, enabling precise paired-pulse stimulation and significantly enhancing the regulatory effect on specific neural circuits.
->Provides full coverage of all cortical regions of the brain, allowing precise targeting and navigation to any desired target point.

Personalized Head Model Intelligent Reconstruction
Supports importing individual MRI data to reconstruct a personalized head model, enabling tailored TMS stimulation. MRI data import is compatible with standard DICOM and NIfTI formats. The software automatically calculates and reconstructs a 3D model of the individual’s head. Head model reconstruction is completed in as little as 3 minutes, with the fastest time being only 1 minute.

Support for Standardized Head Models
The software includes built-in standard MNI average head models for adults and children. This enables TMS navigation for subjects where individual MRI data is unavailable. The calibration process is simple and straightforward.

Multiple Target Localization Methods
The system supports a variety of target positioning approaches, including coordinate input, highlighted display of functional imaging targets, anatomical positioning, preset targets, and automatic recall of historical positions.

MNI Coordinate Origin Correction
The MNI coordinate origin of the personalized head model can be corrected and is automatically saved with the model.

Custom Brain Functional Region Support
Integrated brain functional area parcellation atlases are included, allowing users to custom-draw and define their own brain functional regions.

Real-Time Position Deviation Warning
The system displays and records the three-dimensional coordinates of the stimulation coil, its distance to the cortical surface, coil angle, and other parameters. When the stimulation coil deviates from the preset target, the system issues warning prompts via pop-up windows and audio alerts.

Seamless Integration with YINGCHI TMS for One-Stop Neuromodulation
YINGCHI Transcranial Magnetic Stimulation 3D Navigation System is seamlessly integrated with the YINGCHI TMS stimulator. Both navigation and stimulation are controlled from the same workstation, eliminating the need to enter patient information separately. This enables full sharing and synchronization of patient data, treatment protocols, and session records, making navigation-guided precise treatment significantly more efficient.

TMS Compatible with All Brands of TMS Devices
->In addition to supporting the YINGCHI TMS stimulator, it is also compatible with various third-party transcranial magnetic stimulation devices.
->Supports all types of coils, while simultaneously displaying the coil’s induced electric field focal point and simulated electric field intensity.
